VETERINARY VIDEO LARYNGOSCOPE CR-31V
CR-31V veterinary video laryngoscope for airway examination and guided intubation in cats and dogs, showing a magnified view of the larynx on screen.
The BLUEJUNTAGS CR-31V is a veterinary video laryngoscope for airway examination and guided intubation in cats, dogs and other animals. A camera at the tip of the blade shows a magnified view of the larynx on the screen, so the operator can see the airway directly instead of working by feel.

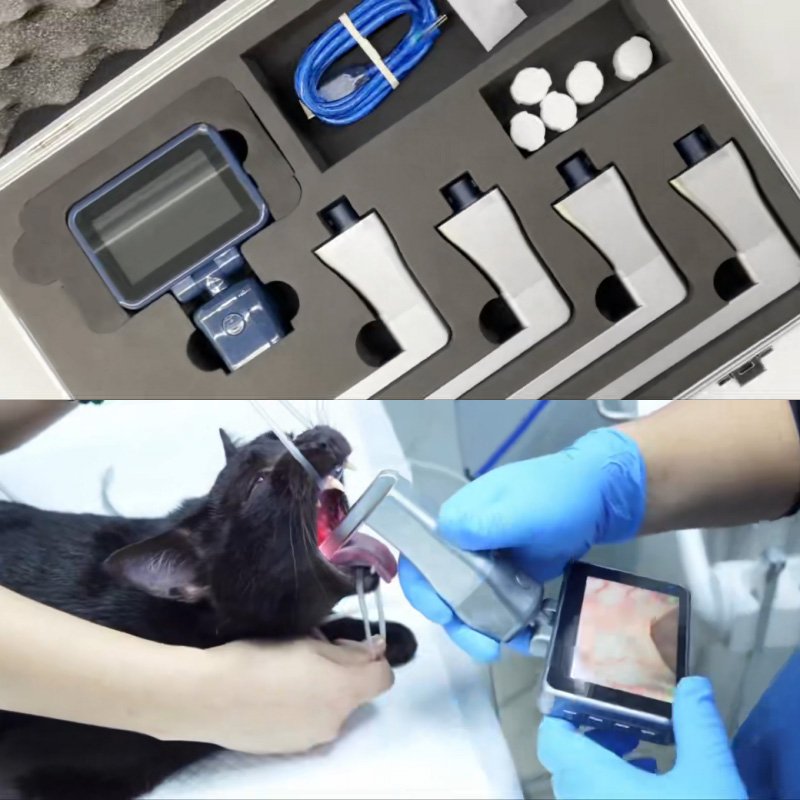

Configuration

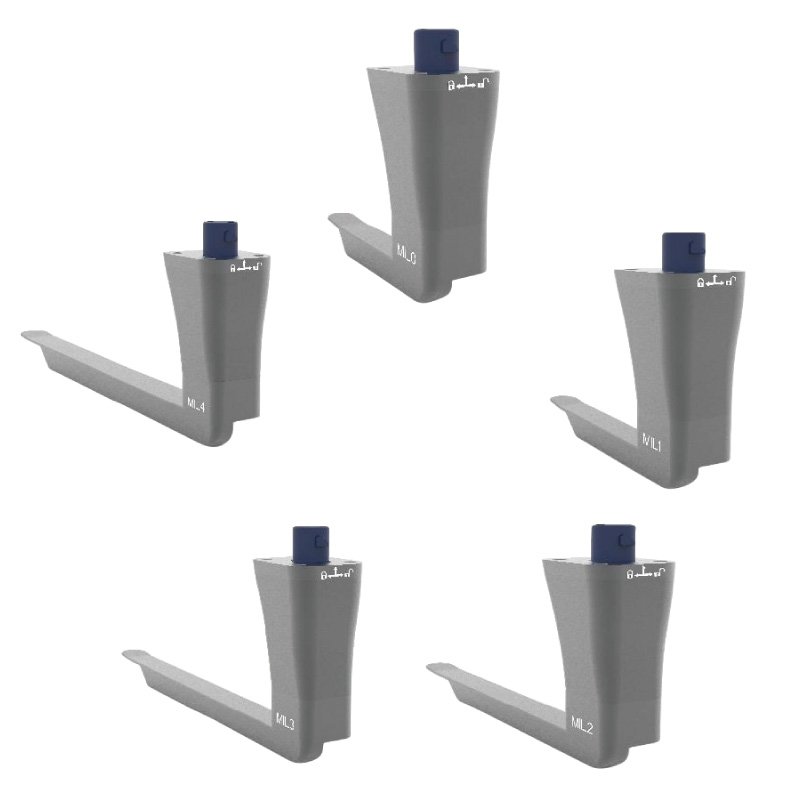

- Supplied with five Miller blades: Miller 0, Miller 1, Miller 2, Miller 3 and Miller 4

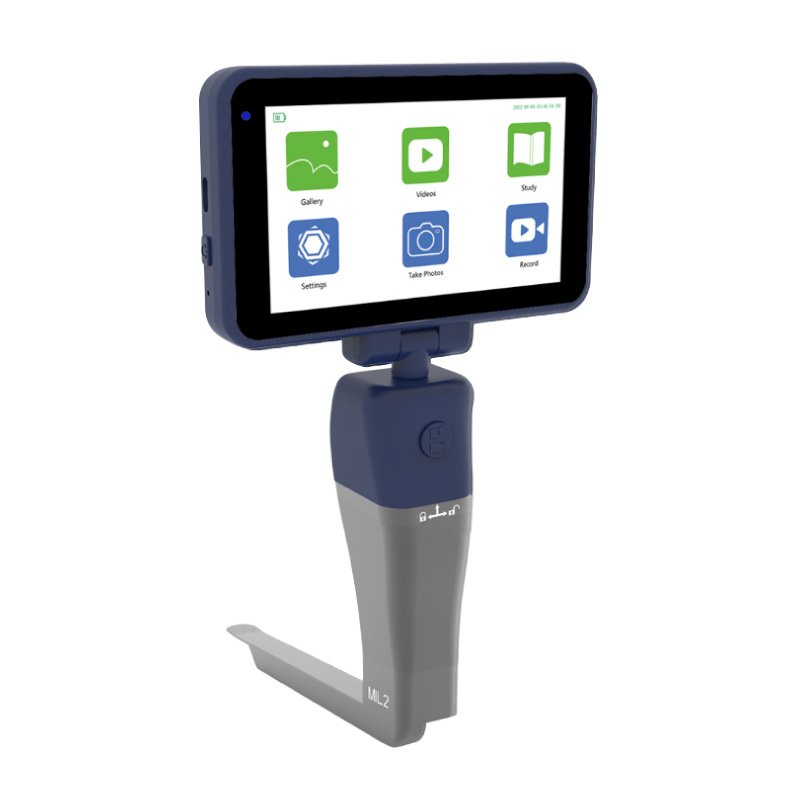

- Two screen versions: 3.2-inch touch screen or 4.5-inch touch screen
- Output: Type C data cable
- Storage: 16GB internal memory with automatic overwrite when full
- Photo and video recording: both functions available
Technical specification
| Display | 3.2-inch touch screen / 4.5-inch touch screen |
|---|---|
| Screen resolution | 800 × 480 (3.2-inch) / 854 × 480 (4.5-inch) |
| Camera resolution | 800 × 480 px (3.2-inch) / 1280 × 720 px (4.5-inch) |
| Camera illumination | ≥1000 LUX (both versions) |
| Viewing angle | ≥60° |
| Screen rotation | 0°-150° and 0°-270° (front/back and left/right) |
| Power consumption | <2W |
| Weight | 150g (3.2-inch) / 232g (4.5-inch) |
| Battery type | Rechargeable lithium-ion |
| Battery capacity | 2500mAh (3.2-inch) / 3500mAh (4.5-inch) |
| Battery cycle life | >1000 cycles |
| Operating time | >6.5 hours (3.2-inch) / >5 hours (4.5-inch) |
| Charging time | <4 hours via Type C port |
| Power adapter | Input 100-240V, 50/60Hz; output 5V 2A |
Key features
- Direct visualisation of the larynx instead of blind intubation
- Five Miller blade sizes covering a wide range of animal sizes
- Touch-screen control with adjustable viewing angle
- Photo and video capture for training and case records
- 16GB internal storage with automatic overwrite — no card to manage
- Type C charging and data transfer
- Handheld weight of 150g in the 3.2-inch version
Applications
Endotracheal intubation during anaesthesia, airway examination, foreign body assessment and difficult-airway management in small animal practice. Also used for teaching intubation technique.
Supply and compliance
Manufactured by Shenzhen Coreray Technology Co., Ltd under ISO 13485 quality management, with an FDA listing for the video laryngoscope. Supplied for export. Wholesale to pet hospitals, veterinary clinics and medical device distributors, with OEM/ODM support and export documentation available on request.
